Description
Brand: Electrobot
Color: black
Features:
- Powerful Audio Output: Delivers 50W x 2 for stereo channels and 100W for the subwoofer, perfect for immersive audio systems.
- Bluetooth 5.0 Connectivity: Seamless wireless audio streaming with a range of up to 15 meters.
- AUX Input: Compatible with a 3.5mm audio jack for wired audio sources.
- Customizable Sound: Bass, treble, volume, and subwoofer frequency control knobs allow precise sound adjustments.
- Compact and Efficient: Lightweight and compact design with an integrated cooling fin for heat management.
- Versatile Applications: Ideal for DIY speaker projects, home theaters, and audio systems.
- Easy Installation: Pre-soldered terminals and clear labels make installation hassle-free.
Package Dimensions: 41x112x200

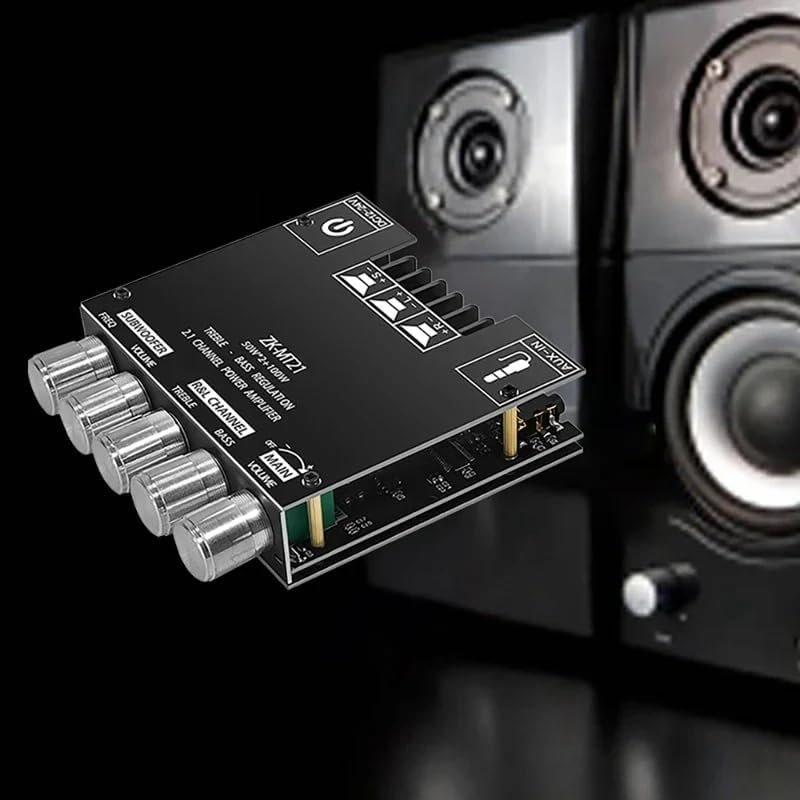

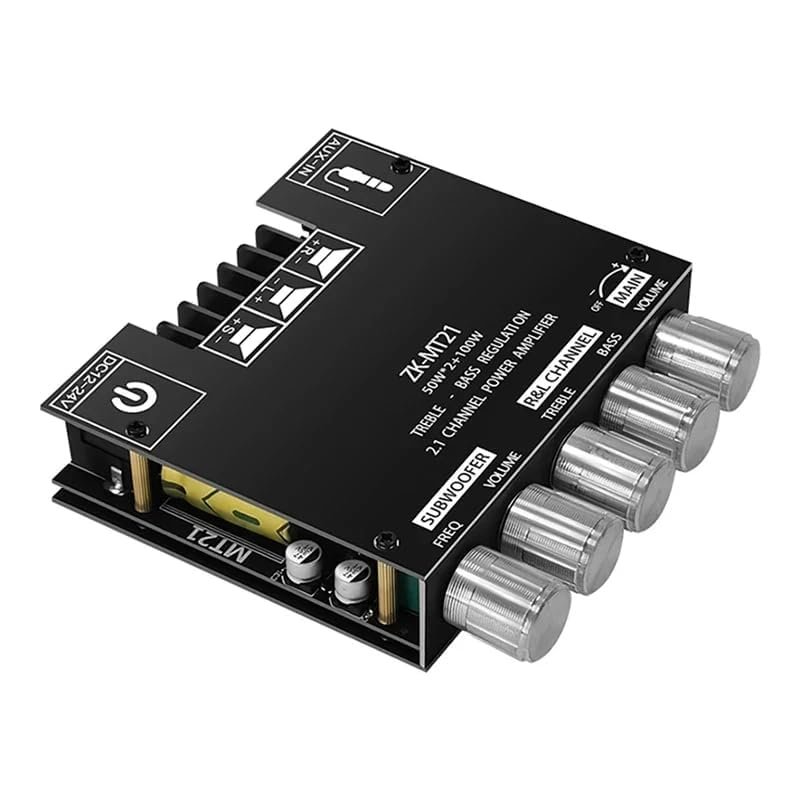

Details: The Electrobot ZK-MT21 is a high-performance 2.1 channel power amplifier module designed to provide excellent audio output for DIY audio projects, home theaters, and speaker systems. Featuring a Bluetooth 5.0 connection and AUX input, this module delivers seamless connectivity and outstanding sound quality.
With an output of 50W x 2 for stereo channels and 100W for the subwoofer, the ZK-MT21 amplifier module offers a powerful and immersive audio experience. Equipped with bass, treble, and volume adjustment knobs, users can customize the audio output to their preferences. The cooling fin ensures efficient heat dissipation for stable, long-term operation.
This amplifier module is compact, easy to install, and perfect for building high-quality audio systems.
Specifications:
Model: ZK-MT21 Channels: 2.1 (Left, Right, and Subwoofer) Input Options: Bluetooth 5.0 and AUX (3.5mm audio jack) Output Power: Stereo channels: 50W x 2 Subwoofer: 100W Bluetooth Range: Up to 15 meters (no shielding) Power Supply: DC 12-24V (recommended 24V/5A for optimal performance) Impedance: 4-8 Ohms (recommended for speakers) Control Knobs: Bass, Treble, Volume, and Subwoofer Frequency Adjustment (20-200Hz) Product Dimensions: 93mm x 90mm x 22mm Weight: Net: ~130g Packaged: ~185g Cooling: Equipped with a 36x25x10mm cooling fin for heat dissipation.
Safety Instructions and Warnings:
Power Supply: Use a stable DC power supply within the range of 12-24V. Avoid using unstable or higher voltage supplies to prevent damage to the board. Do not connect to a 24V battery pack, as it may exceed the module’s voltage tolerance.
Speaker Compatibility: Ensure connected speakers have an impedance of 4-8 Ohms. Incorrect impedance can lead to distortion or damage.
Heat Management: Place the amplifier in a well-ventilated area. Avoid enclosing the module in tight spaces without proper cooling.
Wiring and Connection: Double-check all wiring connections before powering the module. Incorrect connections may result in short circuits or failure.
Volume Settings: Avoid setting the volume at maximum for extended periods to prevent overheating. Gradually increase the volume to avoid sudden power surges.
Environment: Operate in a dry, dust-free environment. Avoid exposure to water or high humidity.
Handling: Handle the board carefully to prevent damage to components or solder joints. When soldering an external antenna, follow the welding guidelines provided in the manual (page 5).
